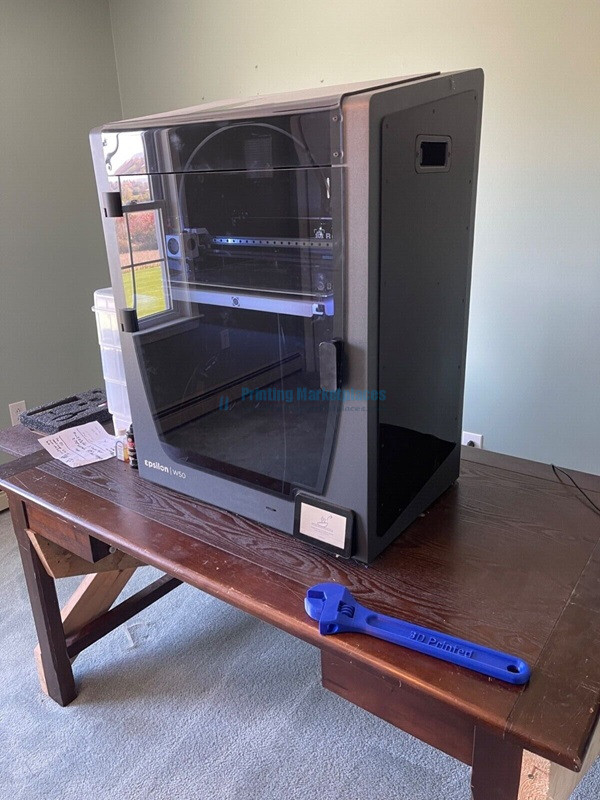

BCN3D Epsilon w50 3D Printer

Product Description

BCN3D Epsilon w50 Extra Large 3D Printer

With its newest machine, BCN3D has unmistakably adopted the concept that “bigger is better.” The straightforward yet robust aluminum frame of the Epsilon W50 has an amazing build capacity of 420 x 300 x 400 mm, giving customers an enormous 50.4L of room to experiment with.

Specifications:

• 3D Printing Technology: Fused Filament Fabrication (FFF)
• Architecture: Independent Dual EXtruder (IDEX)
• Printing volume: 420mm x 300mm x 400mm (16.5” x 11.8” x 15.8”)
• Electronics: Single Board Computer: Toradex ARM Compute Module Motion Board: BCN3D Electronics with Independent Stepper Drivers
• Heated bed: Silicone thermal pad
• Screen: 5″ full color capacitive touchscreen

Printing properties:

• Recommended profiles: Layer height: 0,2mm | 0,3mm | 0,4mm (depending on nozzle diameter)
• Layer height: 0,05mm – 0,5mm (custom profiles)
• Positioning resolution (X / Y / Z): 1,25µm / 1,25µm / 1µm
• Operating temperature: 15 ºC – 30 ºC
• Extruder maximum temperature: 300 ºC
• Heated bed maximum temperature: 120 ºC
• Build chamber maximum temperature: 60 ºC (depending on operating temperature)

Printing modes:

• Single mode
• Duplication mode
• Mirror mode
• Multimaterial mode
• Soluble Supports mode

Supported languages:

• Spanish
• English
• German
• French
• Italian
• Japanese
• Portuguese
• Chinese
