Artec EVA 3D Light Handheld 3D Scanner

Product Description

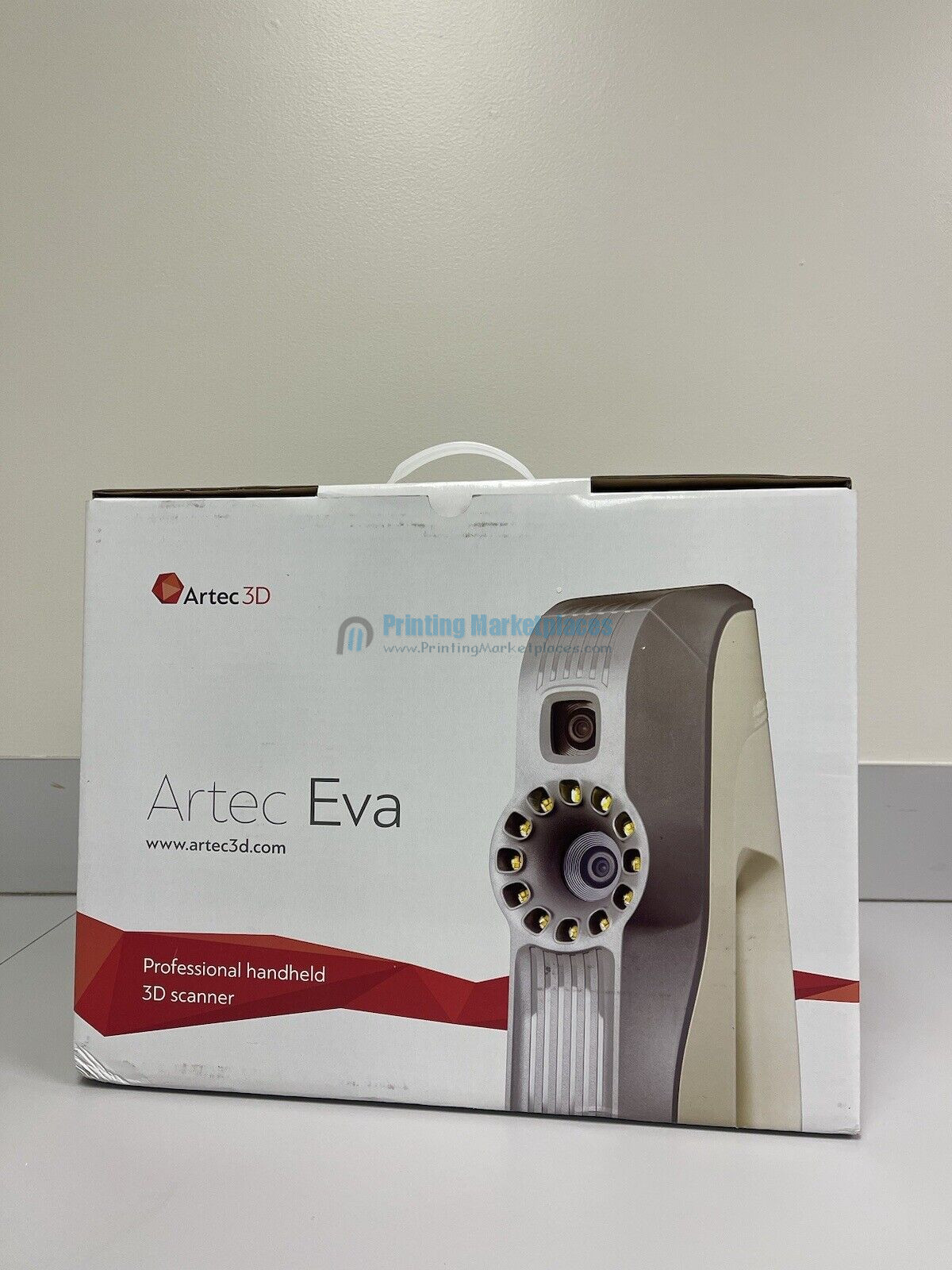

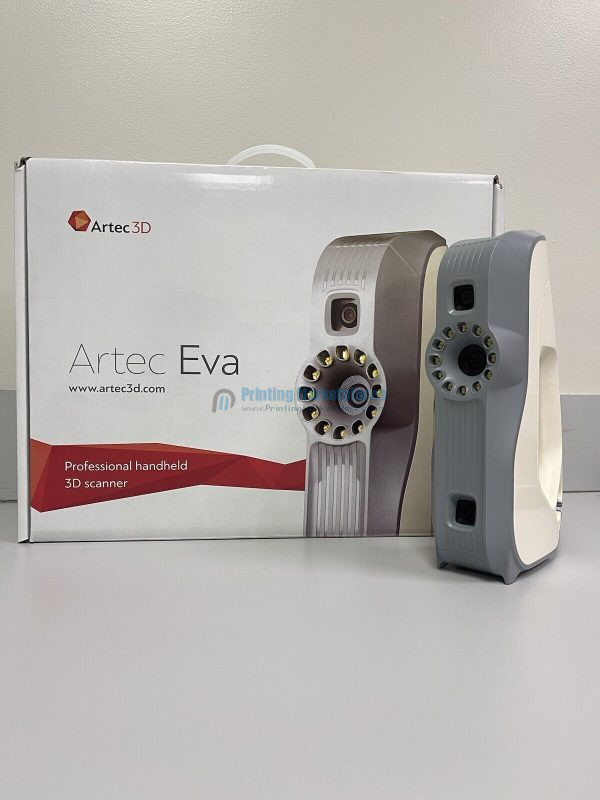

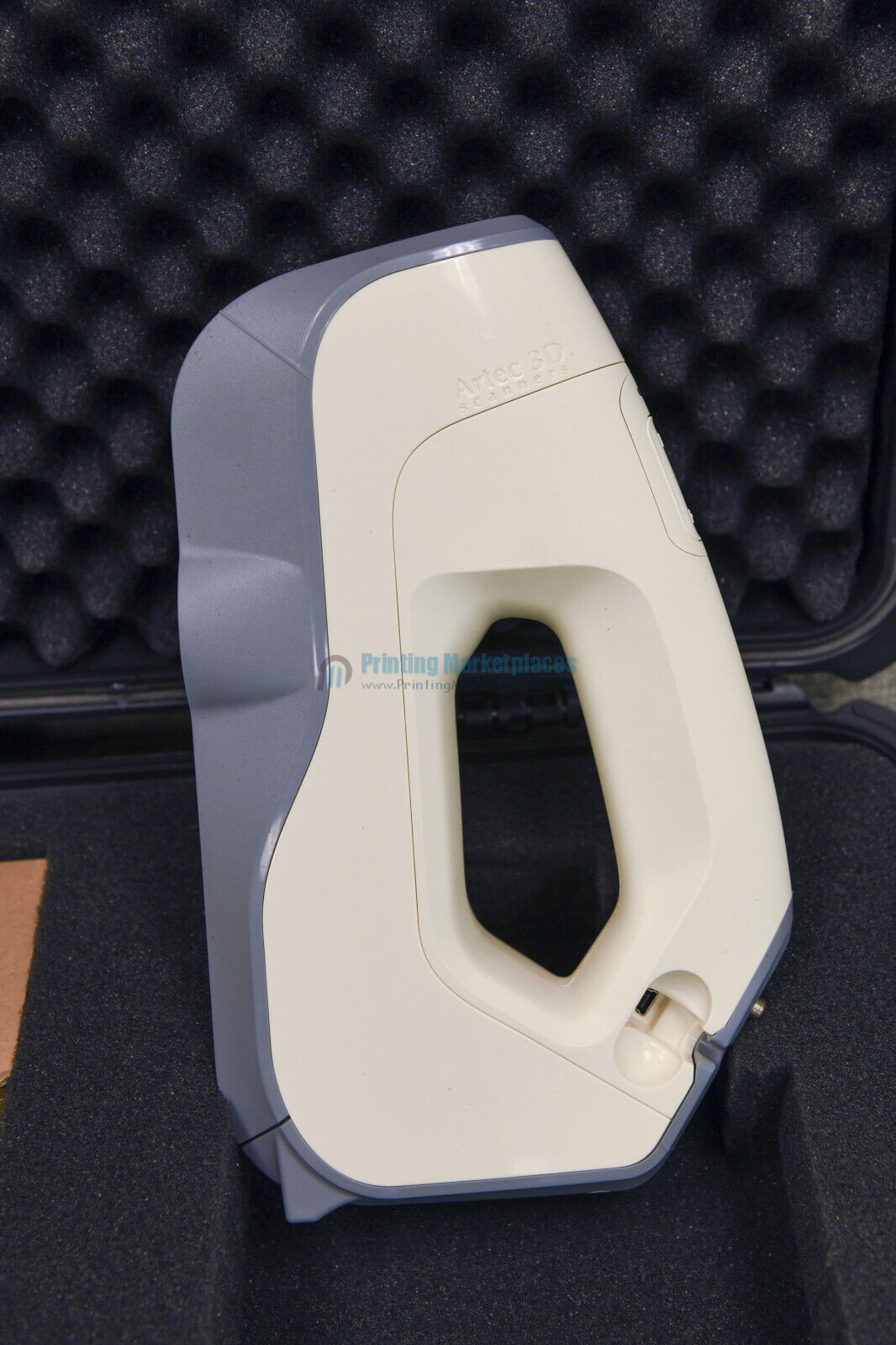

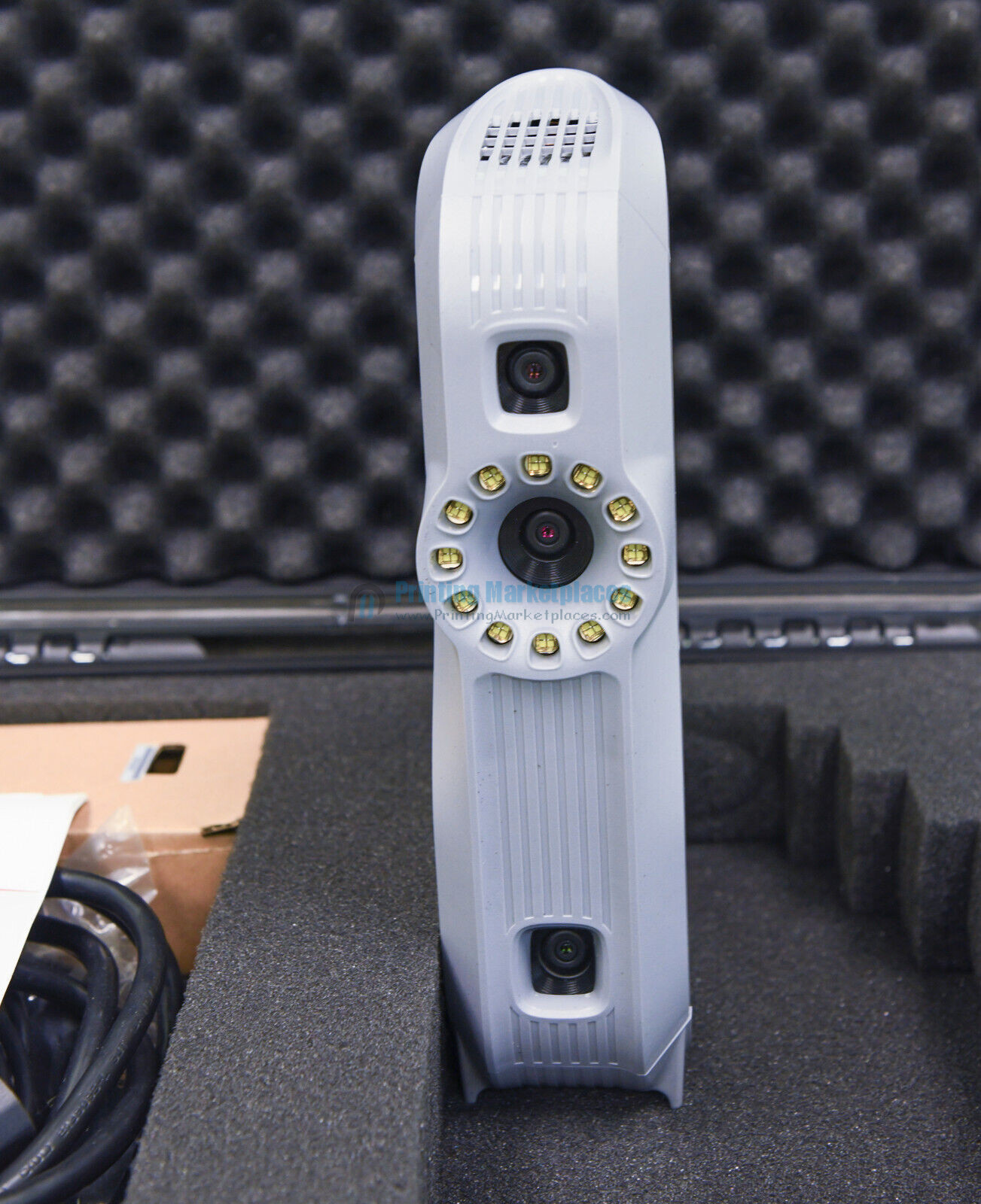

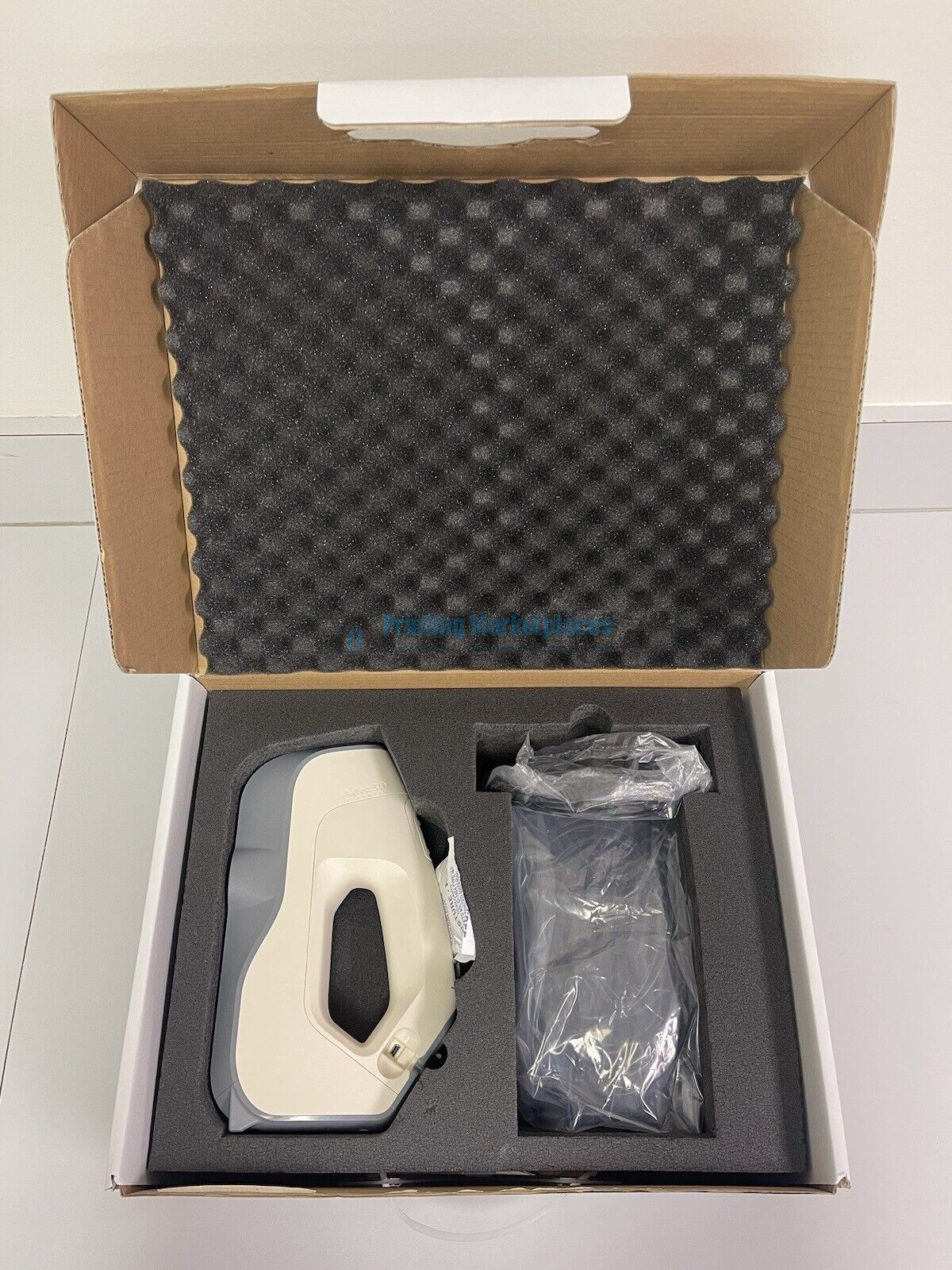

Brand New Artec EVA 3D Light Handheld 3D Scanner
This state-of-the-art Artec EVA 3D handheld scanner lets you take 3D pictures of your environment. Its technology for scanning structured light makes it simple to make intricate 3D models of your hands and other things. No matter where you travel, you may utilize it because of its lightweight construction and small size. Anyone interested in learning more about 3D printing, including artists and designers, will find the Artec EVA 3D scanner ideal. Its Artec brand is well-known for manufacturing dependable, user-friendly 3D scanners of superior quality. The EVA model is a fantastic option for anyone looking for a portable scanner that can take finely detailed 3D pictures.

Artec EVA Specifications:

• Working distance: 0.4 – 1 m
• Volume capture zone: 61,000 cm3
• Linear field of view, H × W @ closest range: 214 × 148 mm
• Linear field of view, H × W @ furthest range: 536 × 371 mm
• Angular field of view, H × W: 30 × 21°
• 3D resolution, up to: 0.2 mm
• 3D point accuracy, up to: 0.1 mm
• 3D accuracy over distance, up to: 0.1 mm + 0.3 mm/m
• Texture resolution: 1.3 mp
• HD Mode: Yes
• Colors: 24 bpp
• 3D reconstruction rate for real-time fusion, up to: 16 fps
• Data acquisition speed, up to: 18 mln points/s
• 3D exposure time: 0.0002 s
• 2D exposure time: 0.00035 s
• 3D light source: Flash bulb
• 2D light source: White 12 LED array
• Display / touchscreen: USB streaming through an external computer
• Interface: 1 × USB 2.0, USB 3.0 compatible
• Supported OS: Windows 7, 8, 10 x64
• 3D mesh formats: OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PTEX), E57, XYZRGB
• CAD formats: STEP, IGES, X_T
• Formats for measurements: CSV, DXF, XML
• Dimensions H × D × W: 262 × 158 × 63 mm
• Weight: 0.9 kg / 2 lb
