Creaform Go Scan Spark 3D Scanner

Product Description

Creaform Go Scan Spark 3D Scanner

Our quickest and most intuitive handheld 3D scanner is the Go!SCAN 3D. The Go!SCAN 3D is an effective tool for product development since it can measure any complicated surface rapidly, allowing you to “get it right” the first time. It will significantly enhance product development, encourage innovation, and reduce time to market with its smooth interaction with your 3D modeling software and product life cycle management process.

PORTABILITY

When it comes to portability, the Go!SCAN 3D is second-to-none. Everything about its design has been considered in order to make your work more efficient. Take it anywhere you need!

• Lightweight: 1.25 kg (2.7 lb)
• Dynamic referencing: Both the object and scanner can be moved freely while scanning

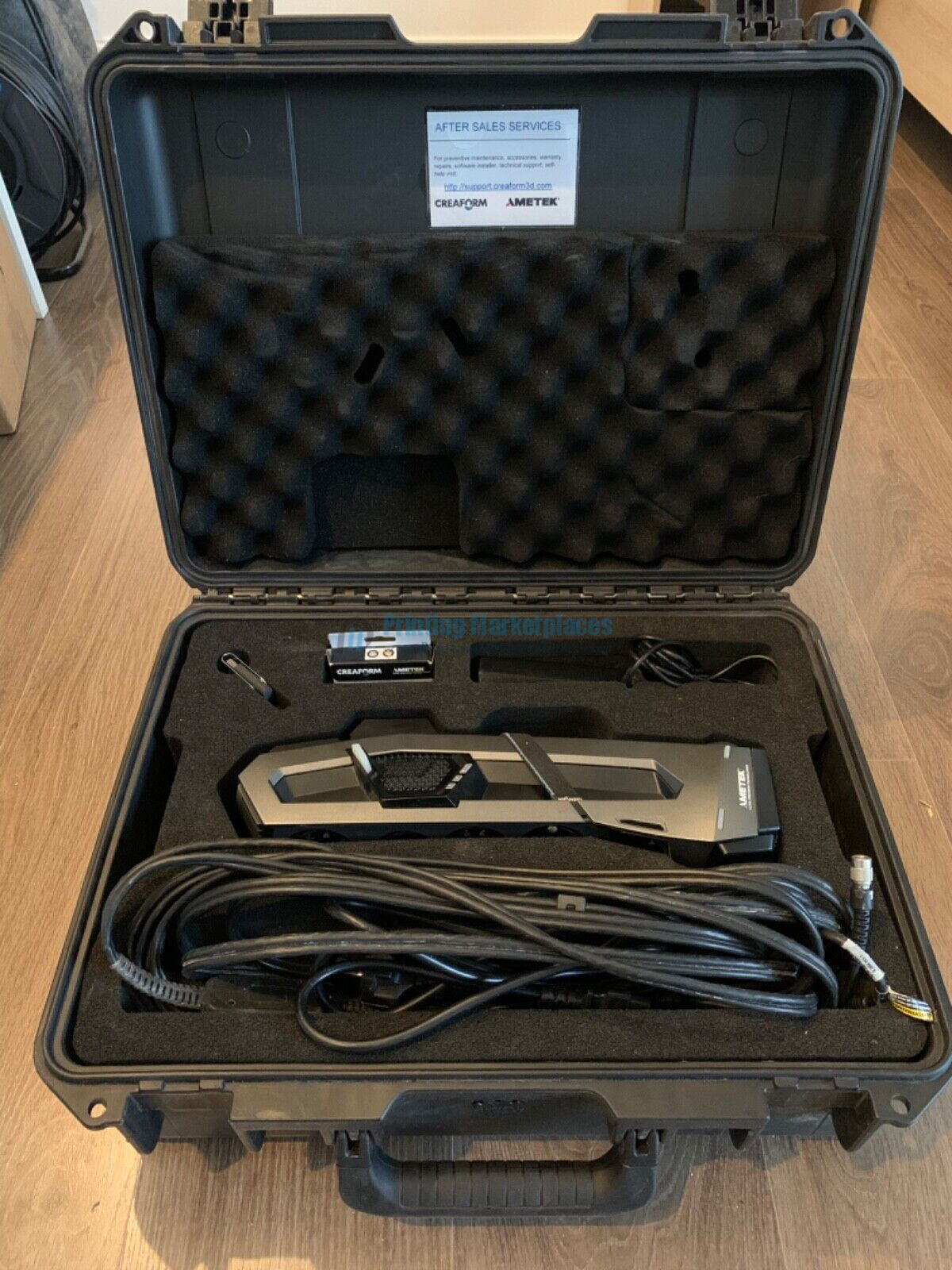

• Fits into a suitcase

SPEED

You need to get your work done quickly? The Go!SCAN 3D is our fastest technology. Most objects can be scanned in mere minutes and quickly integrated into your preferred reverse engineering, computed aided design or 3D printing software.

• Instant mesh: Ready-to-use files
• High measurement rate: Up to 1,500,000 measurements/s99 white light scanning lines
• Quick set-up: Up and running in less than 2 minutes

LEVEL OF DETAILS & SCAN QUALITY

The level of detail on the Go!SCAN 3D is simply astounding. Featuring full support of color, it provides spectacular results.

• Reliable results
• Resolution of 0.100 mm (0.0039 in)
• High resolution for intricate details

TECHNICAL SPECIFICATIONS

• ACCURACY (1): Up to 0.050 mm (0.0020 in)
• VOLUMETRIC ACCURACY (2): 0.050 mm + 0.150 mm/m (0.0020 in + 0.0018 in/ft)
• VOLUMETRIC ACCURACY WITH MaxSHOT Next lElite (3): 0.050 mm + 0.015 mm/m (0.0020 in + 0.00018 in/ft)
• MEASUREMENT RESOLUTION: 0.100 mm (0.0039 in)
• MESH RESOLUTION: 0.200 mm (0.0078 in)
• MEASUREMENT RATE: 1,500,000 measurements/s
• LIGHT SOURCE: White light (99 stripes)
• POSITIONING METHODS: Geometry and/or color and/or targets
• SCANNING AREA: 390 x 390 mm (15.4 x 15.4 in)
• STAND-OFF DISTANCE: 400 mm (15.7 in)
• TEXTURE RESOLUTION: 50 to 200 DPI
• TEXTURE COLORS: 0 to 200 DPI
• TEXTURE COLORS 24 bits
• SOFTWARE: VXelements
• OUTPUT FORMATS: dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
