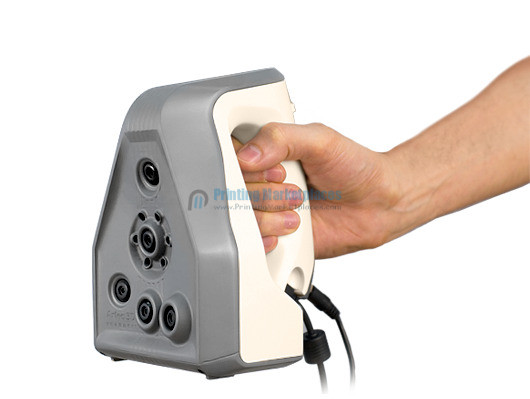

Artec Space Spider 3D Handheld Industrial 3D Scanner

Product Description

Artec Space Spider 3D Handheld Industrial 3D Scanner

Artec Spider 3D Designed specifically for CAD users who require absolute precision, Artec Space Spider is ideal for additive manufacturing, reverse engineering, quality control and mass production. Together with Artec Studio software, it is a powerful tool for engineers and industrial designers of every kind.

Objects to 3D scan
Artec Space Spider is perfect for capturing small objects with complex geometry, sharp edges and thin ribs. Scan objects such as molding parts, PCBs, keys or coins, or even a human ear, use a wide range of measurement and editing tools to work with your data and export it to CAD software.

Artec Space Spider specifications:

• Ability to capture texture: Yes
• 3D resolution, up to: 0.1 mm
• 3D point accuracy, up to: 0.05 mm
• 3D accuracy over distance, up to: 0.03% over 100 cm
• Warm up period for achieving maximum accuracy: 3 minutes
• Texture resolution: 1.3 mp
• Colors: 24 bpp
• Light source: blue LED
• Working distance: 0.2 – 0.3 m
• Linear field of view, HxW @ closest range: 90 mm x 70 mm
• Linear field of view, HxW @ furthest range: 180 mm x 140 mm
• Angular field of view, HхW: 30 x 21°
• Video frame rate, up to: 7.5 fps
• Exposure time: 0.0002 s
• Data acquisition speed, up to: 1 000 000 points/s
• Multi core processing: Yes
• Dimensions, HxDxW: 190 x 140 x 130 mm

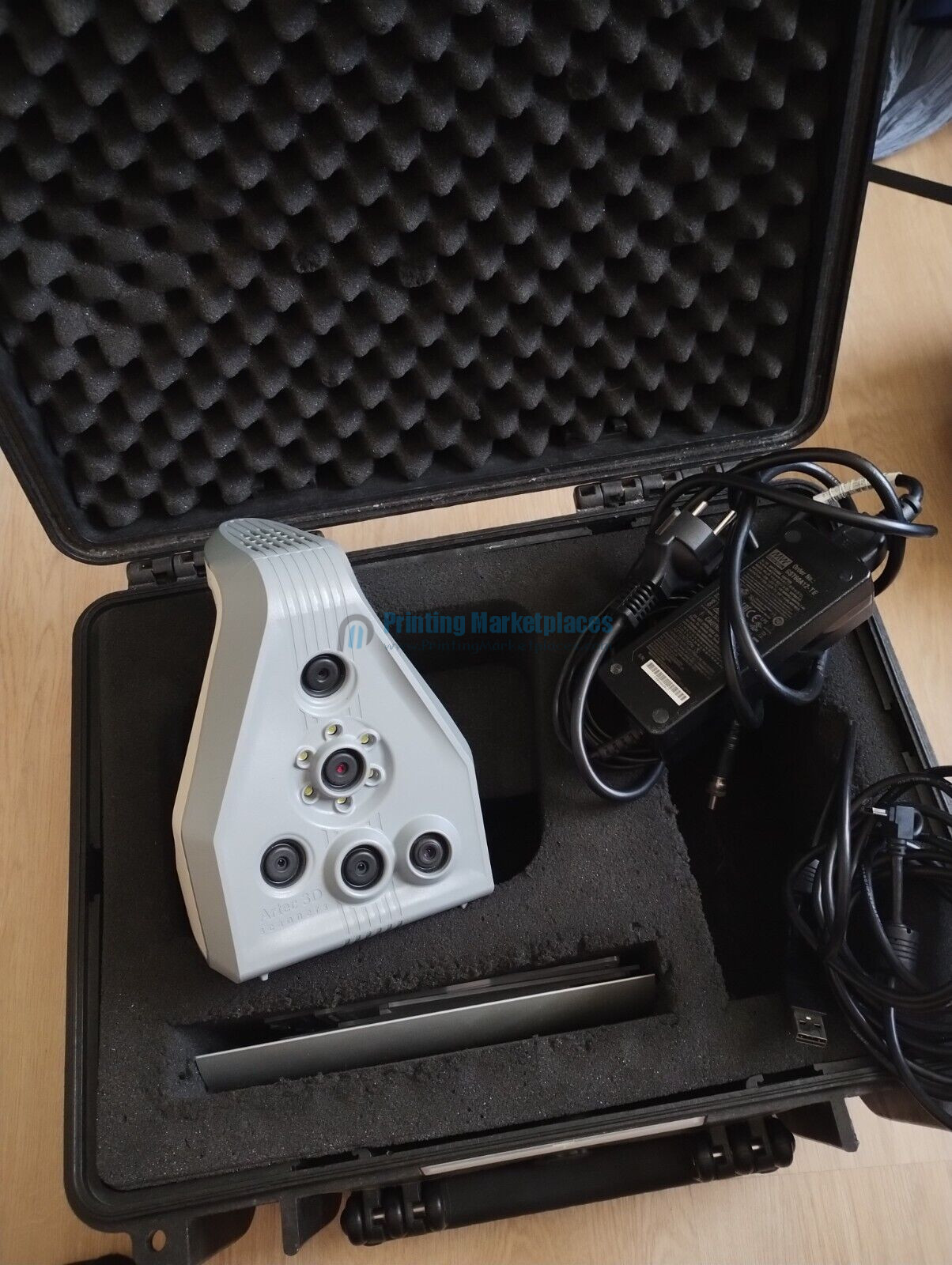

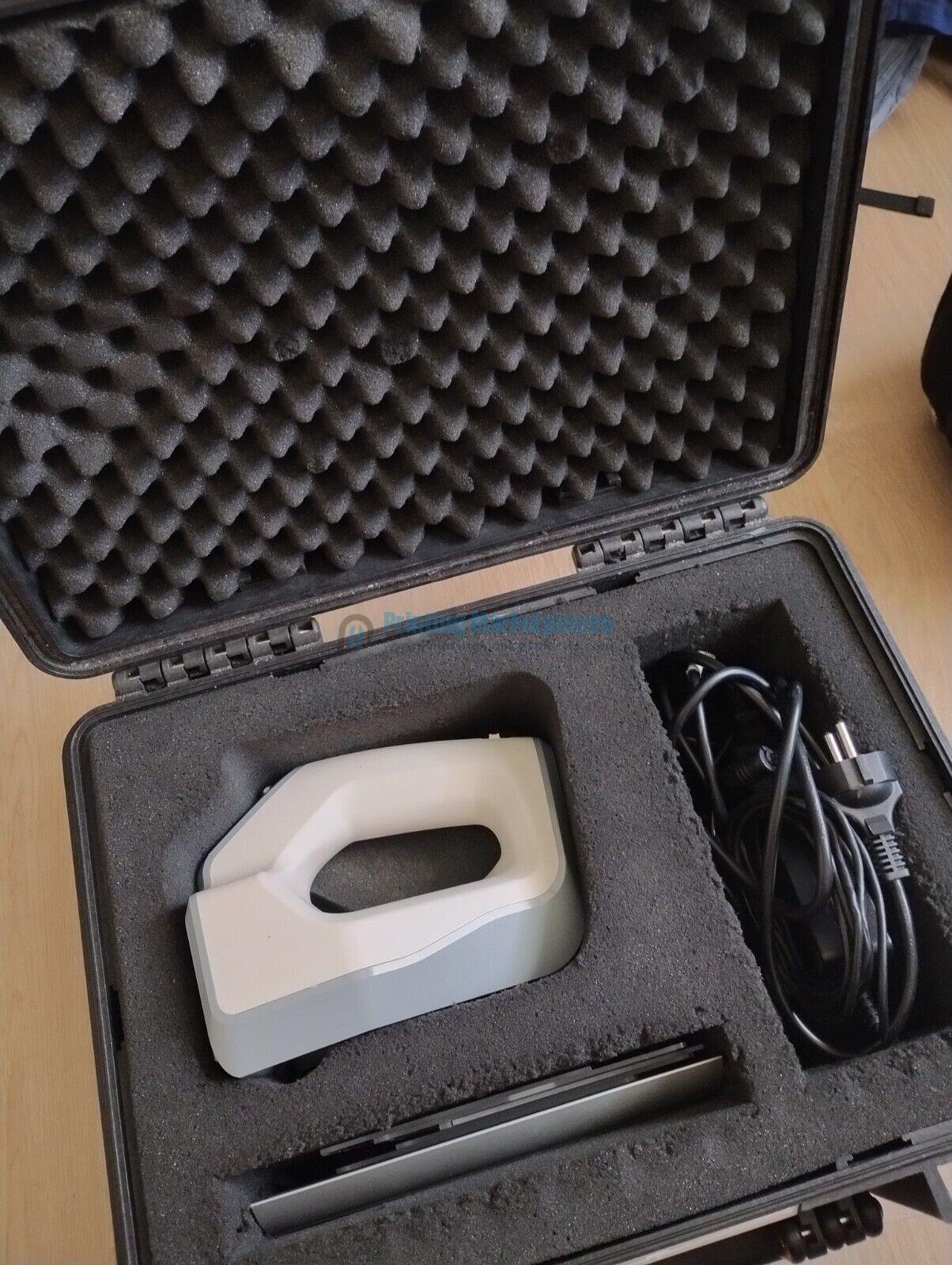

Includes:

• Space Spider 3D scanner

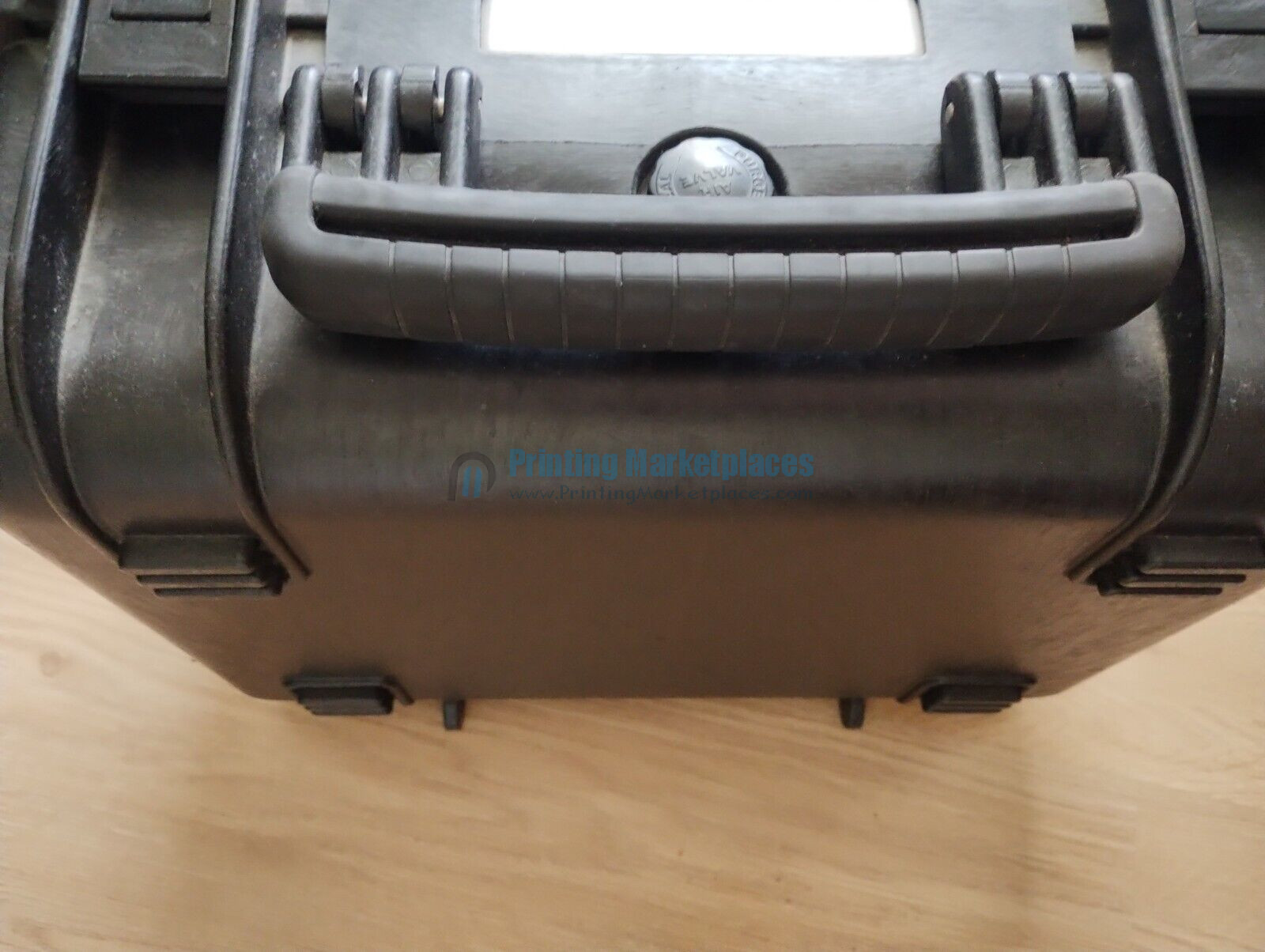

• Pelican Case
• Power Supply
• USB Cable

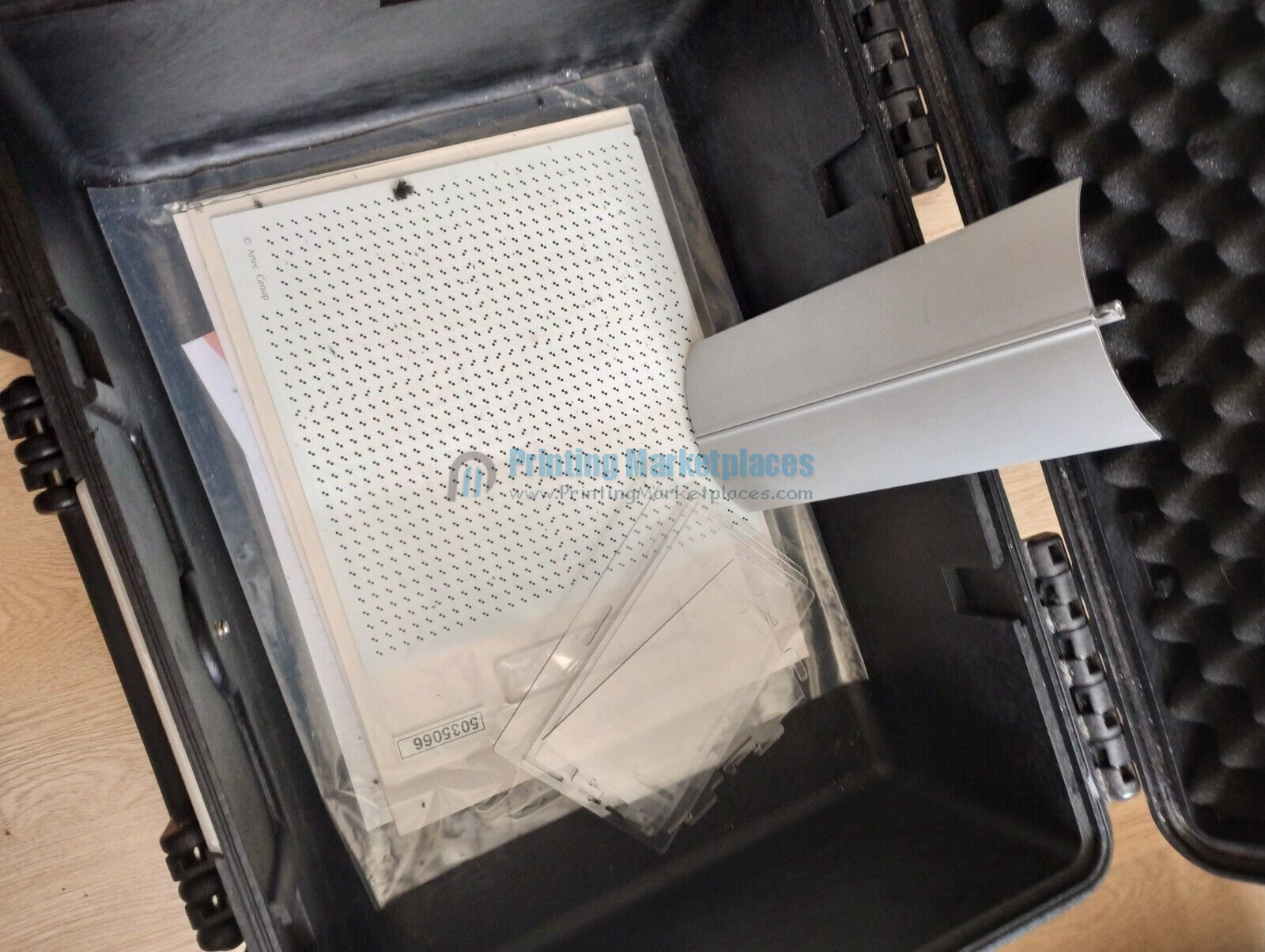

• Calibration Plate and Stand
• Getting Started Manual
